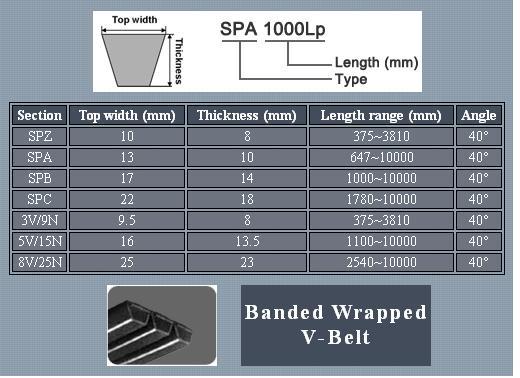

Narrow v-belt has double power transmission capacity of the classic v-belts due to the effect of the wedge.
It features high-speed transmission, and an energy-saving, compact design.
Application: Narrow v-belt can be used on all the new drives, from light duty drives to heavily loaded drives.
Main Type: SPZ, SPA, SPB, SPC, 3V, 5V and 8V
Banded v-belt is made up from Classical, or Narrow belts with a strong tie band over them.
Application: used in Vertical shaft drives, V-flat drives, Compressors, Pumps and Agricultural drives.
<
Main type: RA, RB, RC, R3V, R5V, R8V, RSPZ, RSPA, RSPB and RSPC

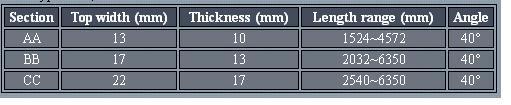

Double V-Belt, also named Six side Belt, there are four side on the working section.
Application: Textile and Agriculture machine.
Main type: AA, BB and CC

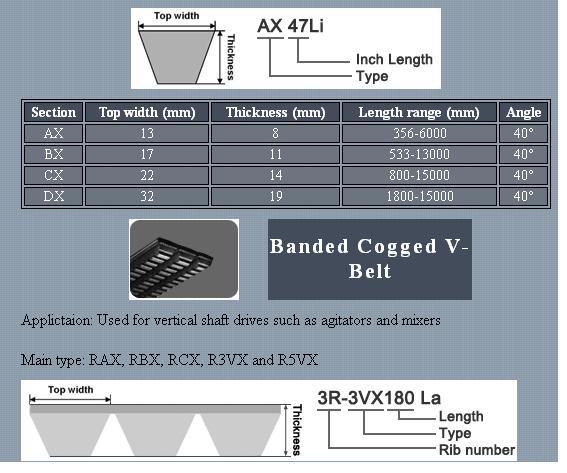

The Raw Edged Cogged Belts have two cut surfaces on both sides, so its resistance to bending and heat dissipation are better than wrapped belts.
Short fibers are mixed in the rubber in the direction of the belt's width, contributing to power transmission and helping to resist abrasion caused by side pressure.
Application: Used on heavy duty, high speed drives
Main Type: FMX, AX, BX, CX, 3VX, 5VX, XPZ, XPA, XPB and XPC

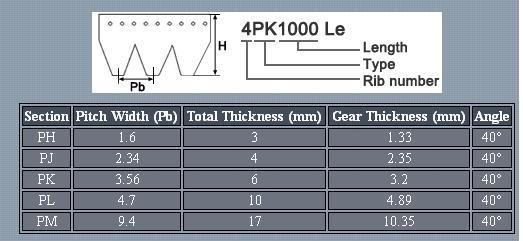

Features high power transmission efficiency and small pulley diameter, combining the high power transmission of V-belts with the good flexibility of flat belts.These features also contribute to the compact design and saving energy for system.
Application: used for Industrial machine,Broadcasting equipment drives and House keeping electrical appliances.
Main Type: PH, PJ, PK, PL and PM

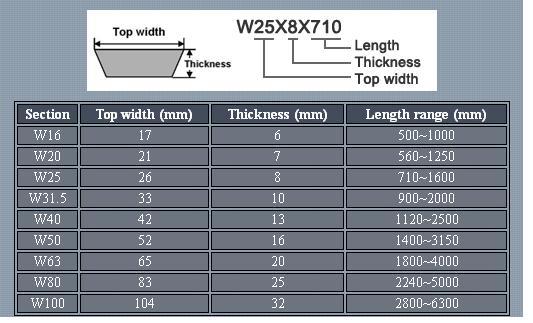

Continuous variable speed belts with good side pressure resistance and flexibility.
High efficient power transmission allows to smoothly follow speed changes, creating excellent acceleration response.
Application: used in gear changers, motorcycles and agricultural machinery.

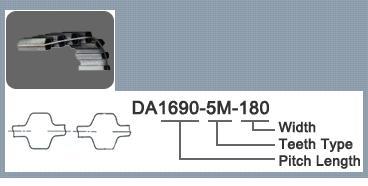

Double teeth timing belt can be divided into two types:
1. DA-duplex synchronous belt tooth, a tooth with its two symmetrical arrangement

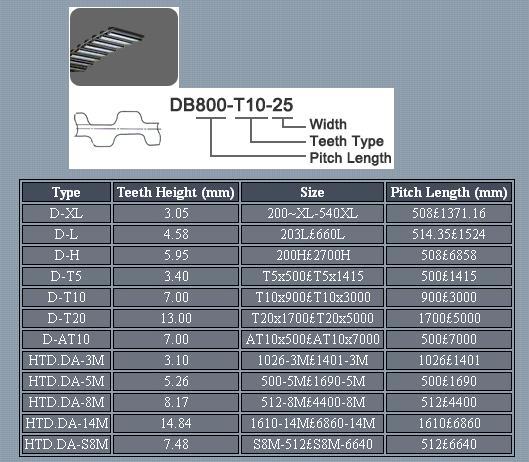

2. DB-duplex synchronous belt gear, with its two locations with staggered teeth

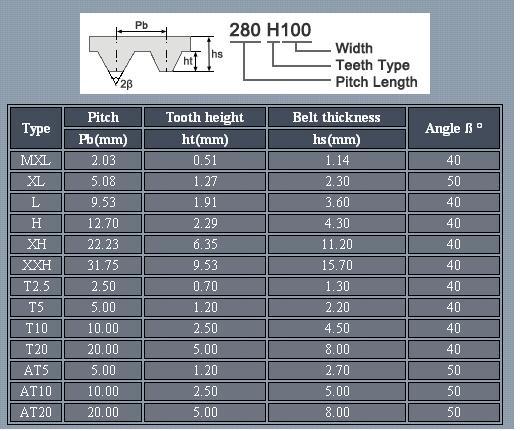

PU timing belt is made of thermoplastic polyurethane, and steel cord or kevlar cord.We offer full range of PU endless and open end timing belt.
Application: Used in Textile, Printing and Chemical Machine and Medical Equipment
Main type: MXL, XL, L, H, T2.5, T5, T10, 2M, S2M, 3M, S3M, 5M, S5M, 8M and S8M
