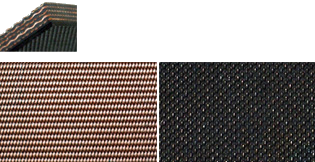

Structure

Top cover, can be flat or impression

fabric plies

Description

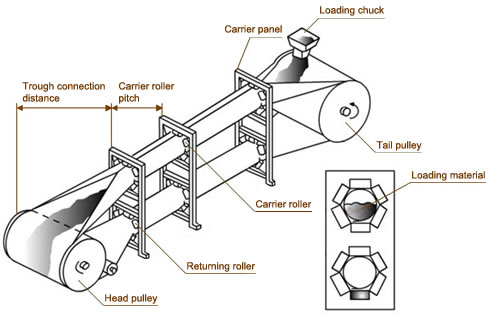

Mainly used in conveying powdery and granular materials, allows material to be conveyed through difficult terrain and over long distances.

The belt form from flat to U shape and finally to pipe shape, folding the materials and realizing the process of enclosed conveying.



Description:

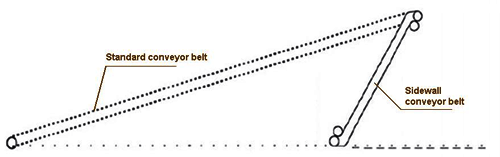

Sidewall conveyor belt can be used for horizontal, sloping or vertical conveyance, it is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, less space and requirement, no transfer point, low maintenance and big capacity.

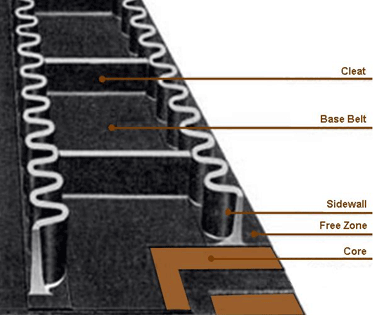

It Is Based On The Following Main Components

Cross-Stabilized Base Belts

Sidewalls

Cleats

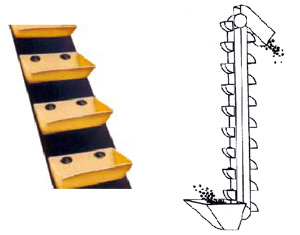

Elevator Conveyor Belts

The belt is made of either anti-tearing EP canvas or steel cord as center material with anti-tearing rubber cover, good application capability, running steadily, low maintenance.

Construction

Rubber belt & elevator bucket.

Characteristic

Little earth coverage, no pollution, great conveying capacity, suitable for conveying bulk material.

Application

Vertical transportation of loose powdery material, widely used in building, mining, chemical, light industry, power station and grain etc. field.

Standard Specifications Of The Rubber Belt

Carcass: EP or Cotton Duck
Max. Belt Width: ~2200 mm
Cover Rubber: Resistant to wear, oil, heat and anti-static.

Elevator Buckets

We have different models which are available for your choice.

Description

Endless conveyor belt is conveyor belt that has been made into endless without joint in the process of production.

Characteristic

Its feature is that there is no joint in belt carcass, and the belt shall not be shortened in service life due to early failure in the joints of the belt. The belt is flat in surface and even in tension, thus it runs smoothly and its elongation in working is low.

Cover Rubber classification: General, oil, heat and chemical-resistant, etc.

We can make endless belt of light conveyor belt, general use belt and heavy duty belt according to customers' requirement.

Application

It is widely used in building, mines, chemical plants, metallurgical industry and agriculture.
